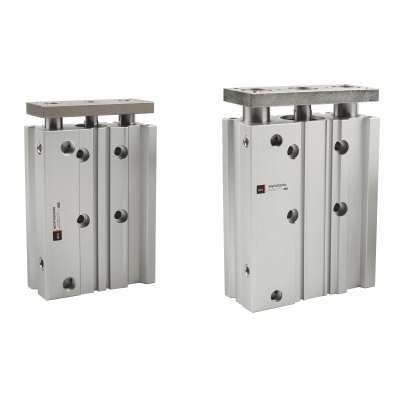

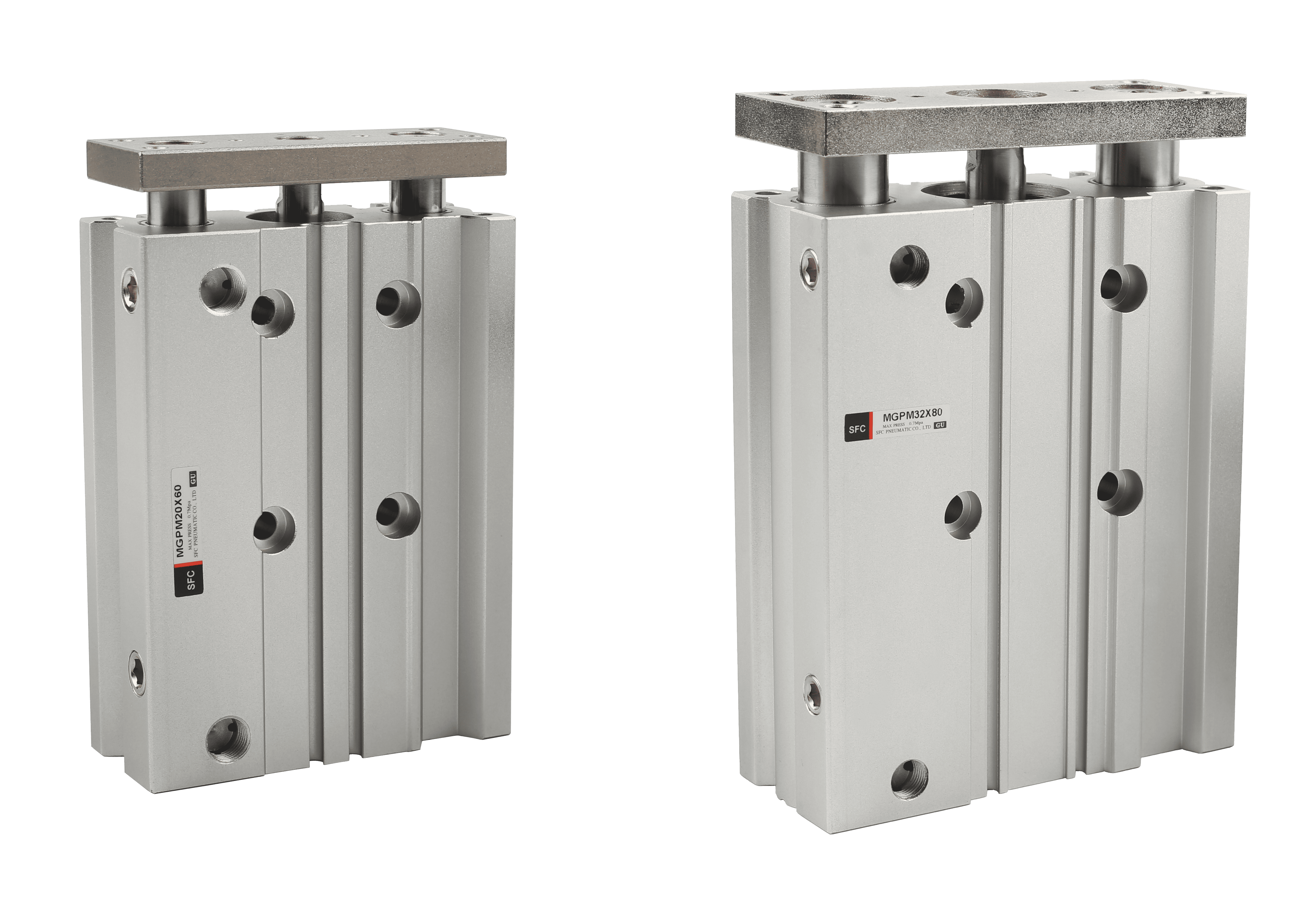

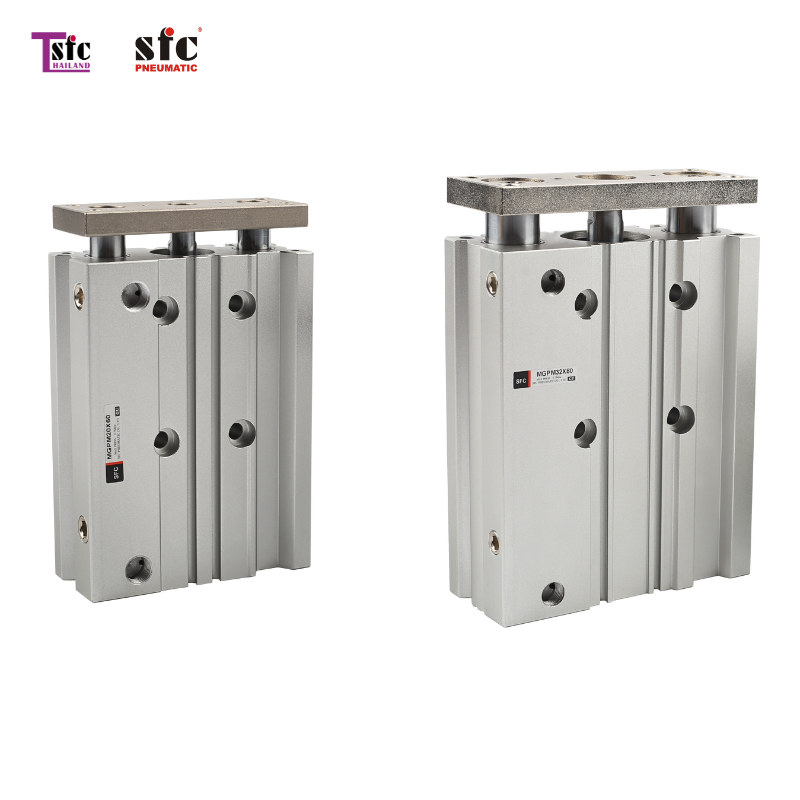

COMPACT GUIDE CYLINDER SERIES MGPM จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: COMPACT GUIDE CYLINDER SERIES MGPM
| Model | Bore size | Port size | Standard Stroke (mm) | Max.Cylinder principle force | Piston port size | Max.operating pressure |
| MGPM12 | 12 | M5 | 5-50 | 10Kgf | M3X0.5,M5X0.8 | 0-10 kgf/cm² |
| MGPM16 | 16 | M5 | 5-50 | 14Kgf | M3X0.5,M5X0.8 | |
| MGPM20 | 20 | M5 | 5-50 | 28Kgf | M4X0.7,M6X1 | |
| MGPM25 | 25 | M5 | 5-50 | 44Kgf | M5X0.8,M8X1.25 | |
| MGPM32 | 32 | PT1/8 | 5-500 | 70Kgf | M6X1,M10X1.25 | |
| MGPM40 | 40 | PT1/8 | 5-500 | 110Kgf | M8X1.25,M14X1.5 | |
| MGPM50 | 50 | PT1/4 | 5-500 | 170Kgf | M10X1.5,M18X1.5 | |
| MGPM63 | 63 | PT1/4 | 5-500 | 280Kgf | M10X1.5,M18X1.5 | |
| MGPM80 | 80 | 5-500 | ||||
| MGPM100 | 100 | 5-500 |
