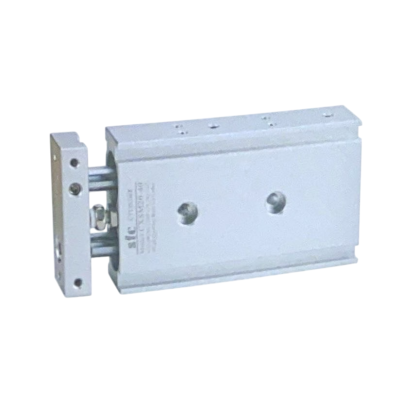

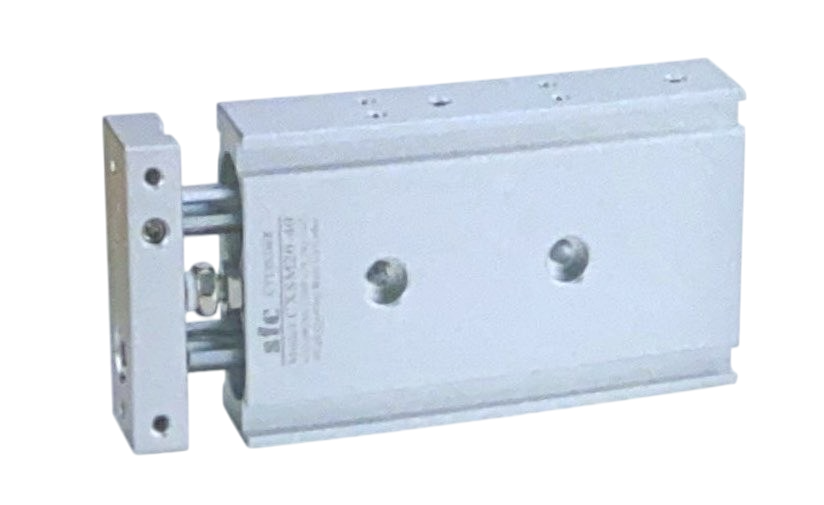

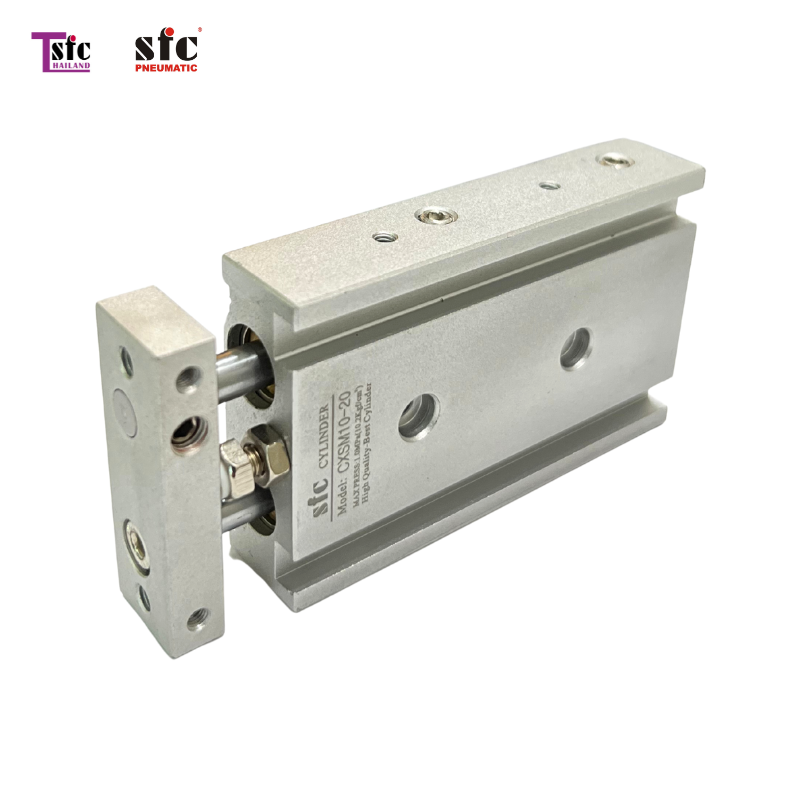

TWIN-ROD CYLINDER SERIES CXSM จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: TWIN-ROD CYLINDER SERIES CXSM
| Model | Bore size | Port size | Standard Stroke (mm) | Max.Cylinder principle force | Piston OD. | Body type | Valve type | Max.operating pressure |
| CXSM 10 | 10 | M5 | 5-50 | 4Kgf | 6 | Y-Y joint I-I joint | CXSM | 0-10 kgf/cm² |
| CXSM 16 | 16 | M5 | 5-100 | 8Kgf | 8 | |||
| CXSM 20 | 20 | M5 | 5-100 | 14Kgf | 10 | |||
| CXSM 25 | 25 | PT1/8 | 5-100 | 28Kgf | 12 | |||
| CXSM 32 | 32 | PT1/8 | 5-100 | 44Kgf | 16 |
