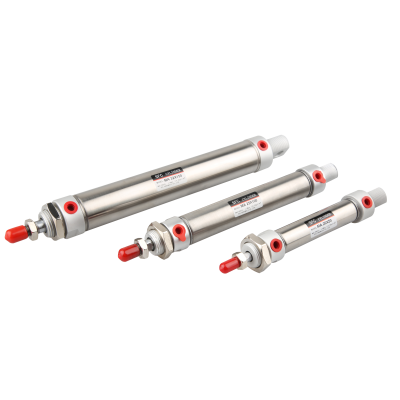

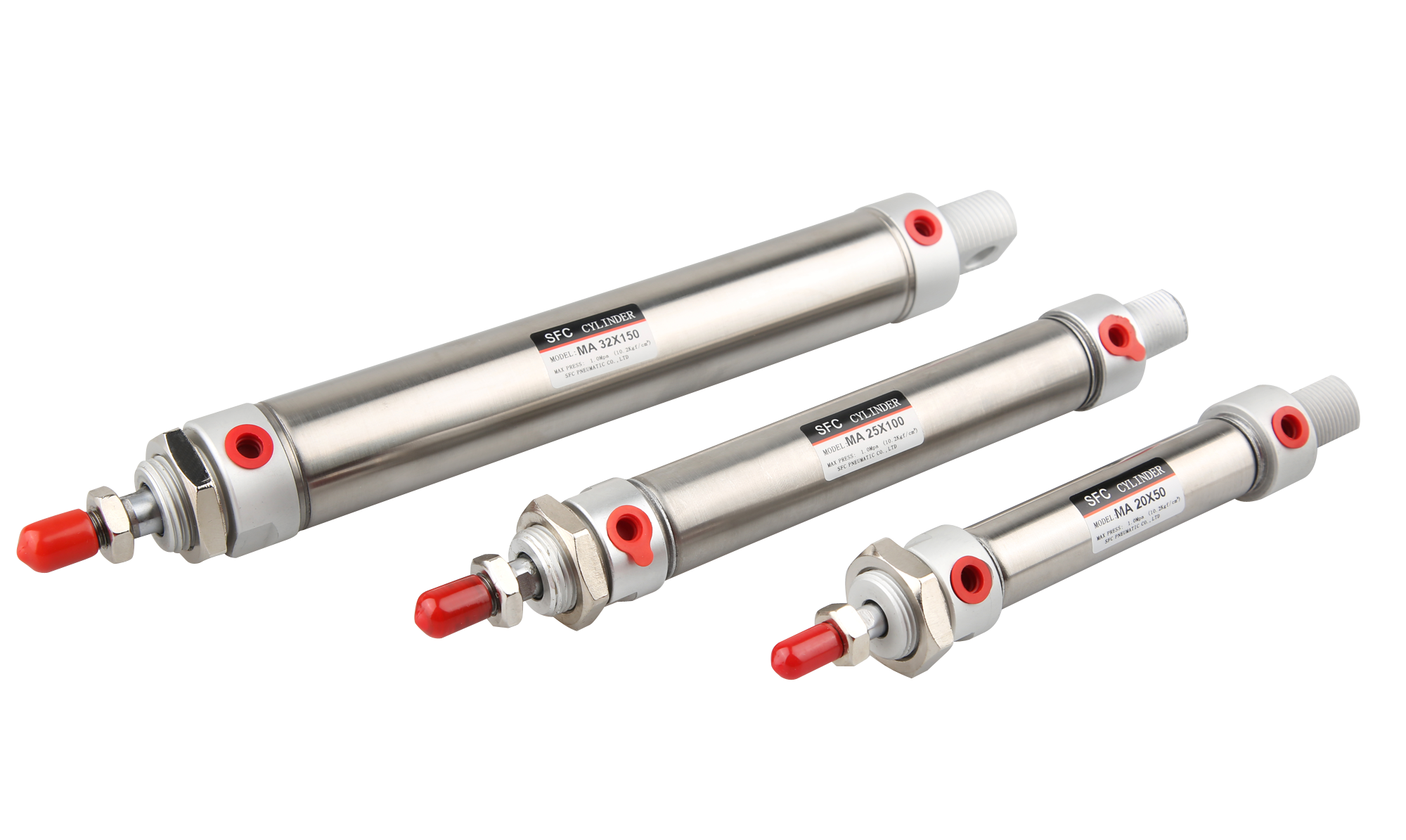

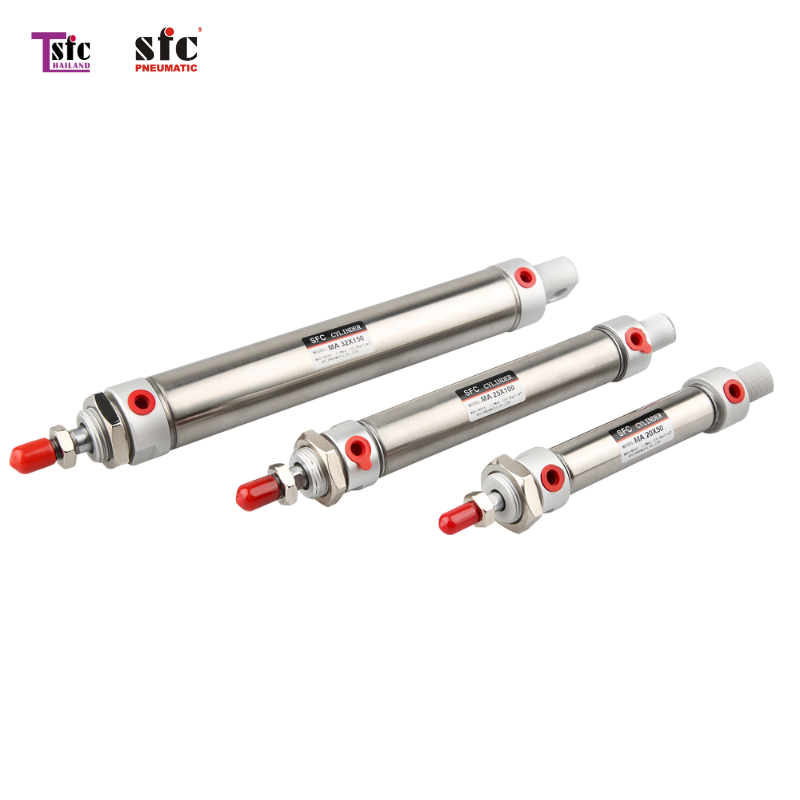

SLIM CYLINDER SERIES MA จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: SLIM CYLINDER SERIES MA
| Model | Bore size | Port size | Standard stroke (mm) | Max.Cylinder principle force | Piston port size | Body type | Valve type | Max.operating pressure |
| MA16 | 16 | M5 | 25-300 | 14Kgf | M6X1 | FA-front flange FB-rear flange CA-single clevis CB-double clevis LB-foot bracket Y-Y joint I-I joint | MA-S MAD MAJ MSA MTA | 0-10 kgf/cm² |
| MA20 | 20 | PT1/8 | 25-300 | 28Kgf | M8X1.25 | |||
| MA25 | 25 | PT1/8 | 25-500 | 44Kgf | M10X1.25 | |||
| MA32 | 32 | PT1/8 | 25-500 | 70Kgf | M10X1.25 | |||
| MA40 | 40 | PT1/4 | 25-500 | 110Kgf | M12X1.25 |
