Shock absorbers Visitor: 0 times

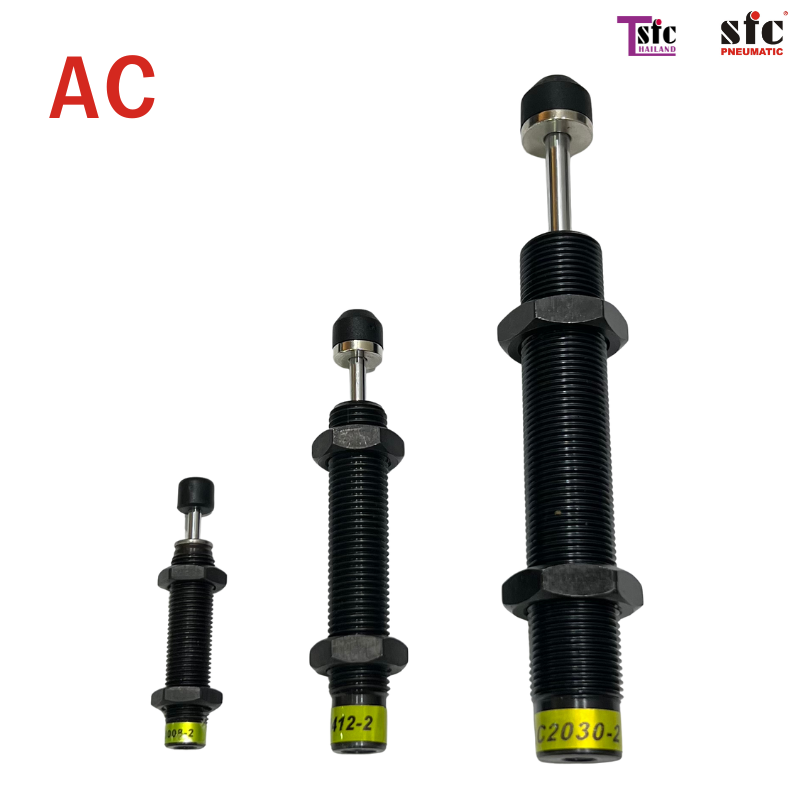

Specification, Detail: Shock absorbers

Model	Max.absorbing energy	Max.allowable Push force	Speed(m/sec)	Stroke	Port size	Operating temp.range
AC0806	2	6	0.8~2	6mm	M8x1	-10~80°C
AC1005	3	7	0.8~3	5mm	M10x1	-10~80°C
AC1008	4	9	0.8~3	8mm	M10x1	-10~80°C
AC1210	5	30	0.8~3	10mm	M12x1	-10~80°C
AC1410	16	100	0.8~3	10mm	M14X1.5	-10~80°C
AC1412	15	110	0.8~3	12mm	M14X1.5	-10~80°C
AC1416	20	150	0.8~3	16mm	M14X1.5	-10~80°C
AC1420	22	160	0.8~3	20mm	M14X1.5	-10~80°C
AC2020	40	700	1.0~3.5	20mm	M20X1.5	-10~80°C
AC2030	50	750	1.0~3.5	30mm	M20X1.5	-10~80°C
AC2050	60	1200	1.0~3.5	50mm	M20X1.5	-10~80°C
AC2525	80	1500	1.0~4.0	25mm	M25X1.5	-10~80°C
AC2530	90	1800	1.0~4.0	30mm	M25X1.5	-10~80°C
AC2540	120	2000	1.0~4.0	40mm	M25X1.5	-10~80°C
AC2550	100	160	1.0~4.0	50mm	M25X1.5	-10~80°C
AC3660	250	2400	1.0~4.0	60mm	M36X1.5	-10~80°C
