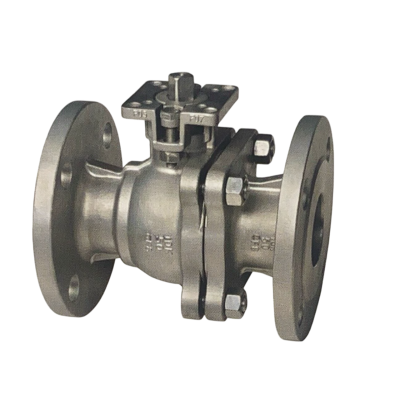

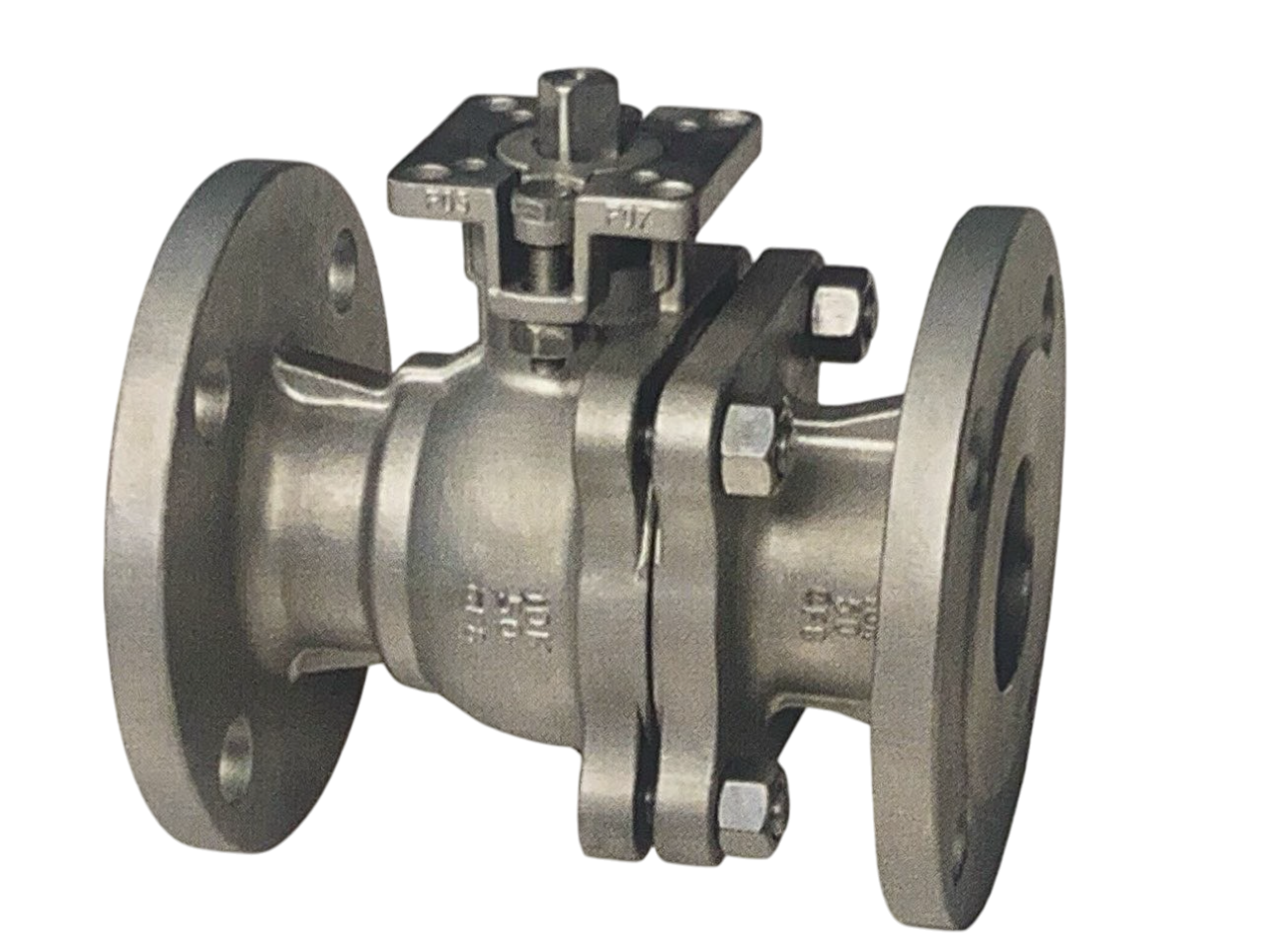

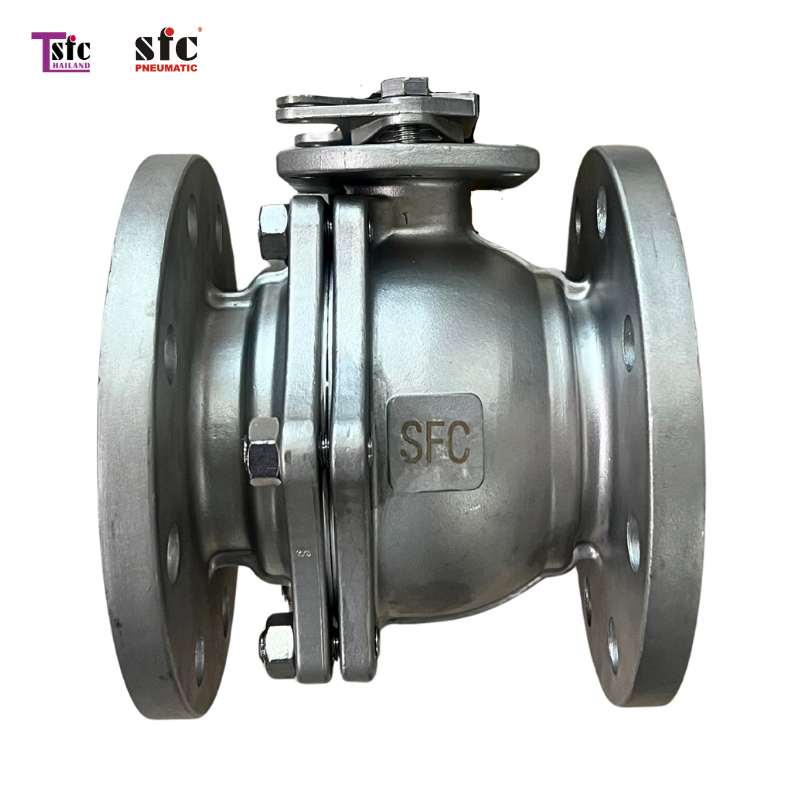

2PC BALL VALVE SUS316 HIGH PLATFORM จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: 2PC BALL VALVE SUS316 HIGH PLATFORM
| Model | Size | 10K | |||||||
| L | D | D1 | D2 | B | Z-Ød | H | D0 | ||
| 2BVH10K-1/2" | DN15 | 108 | 95 | 70 | 52 | 12 | 4-Ø15 | 59 | 130 |
| 2BVH10K-3/4" | DN20 | 117 | 100 | 75 | 58 | 14 | 4-Ø15 | 63 | 130 |
| 2BVH10K-1" | DN25 | 127 | 125 | 90 | 70 | 14 | 4-Ø19 | 75 | 160 |
| 2BVH10K-1 1/4" | DN32 | 140 | 135 | 100 | 80 | 16 | 4-Ø19 | 75 | 160 |
| 2BVH10K-1 1/2" | DN40 | 165 | 140 | 105 | 85 | 16 | 4-Ø19 | 95 | 230 |
| 2BVH10K-2" | DN50 | 178 | 155 | 120 | 100 | 16 | 4-Ø19 | 107 | 230 |
| 2BVH10K-2 1/2" | DN65 | 190 | 175 | 140 | 120 | 18 | 4-Ø19 | 142 | 400 |
| 2BVH10K-3" | DN80 | 203 | 185 | 150 | 130 | 18 | 4-Ø19 | 152 | 400 |
| 2BVH10K-4" | DN100 | 229 | 210 | 175 | 155 | 18 | 4-Ø19 | 178 | 700 |
| 2BVH10K-5" | DN125 | 356 | 250 | 210 | 185 | 20 | 4-Ø23 | 252 | 1100 |
| 2BVH10K-6" | DN150 | 394 | 280 | 240 | 215 | 22 | 4-Ø23 | 272 | 1100 |
| 2BVH10K-8" | DN200 | 457 | 330 | 290 | 266 | 22 | 4-Ø23 | 342 | 1500 |
